AC 101 H

AC 101 H

Product code: ACC125008Z

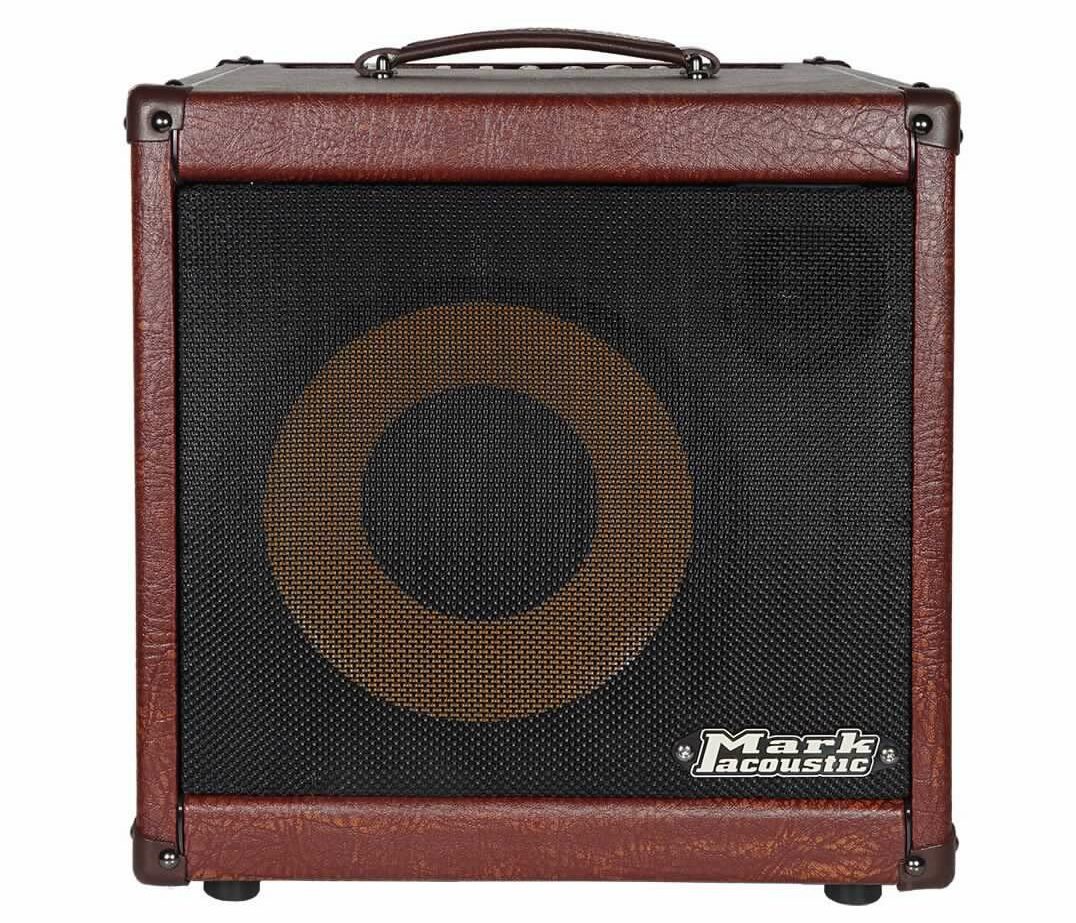

Impressive musical clarity, tonal flexibility, satisfying bottom end from our 10" custom speaker and smooth and crisp highs from the 1" voice coil tweeter of the Markacoustic AC 101H —now with a new brown cool look— make it the ideal amp for a wide range of acoustic instruments, from acoustic guitar to acoustic bass, harp, cello, accordion, etc.

The AC 101H includes all the features that acoustic musicians need: 48V phantom power for use with condenser microphones, etc., feedback control and phase reverse to easily manage feedback problems and capture the true essence of your acoustic sound while also providing you with serious headroom, pre/post EQ switch for the XLR DI, FX send/return, tuner out and a next generation of digital reverb and chorus, sweet sounding, warm and natural.
Note: Markacoustic amps/combos are manufactured to be sold and used in the country of purchase, and they are factory preset to that country’s voltage. Due to homologation issues, the voltage may not be changed.
Specifications:

Additional information

POWER

SERIES

SPEAKER CONFIG

SIZE

PREAMP

POWER AMP

CHANNELS

Technical Features

INPUTS
CH 1: Impedance 500 Kohm/  Maximum Vpp: 10
CH 2: Impedance  500 Kohm/  Maximum Vpp: 10
BALANCED CH2: Impedance  500 Kohm/  Maximum Vpp: 20
RETURN: unbalanced, Impedance 33  Kohm// Max 10Vpp

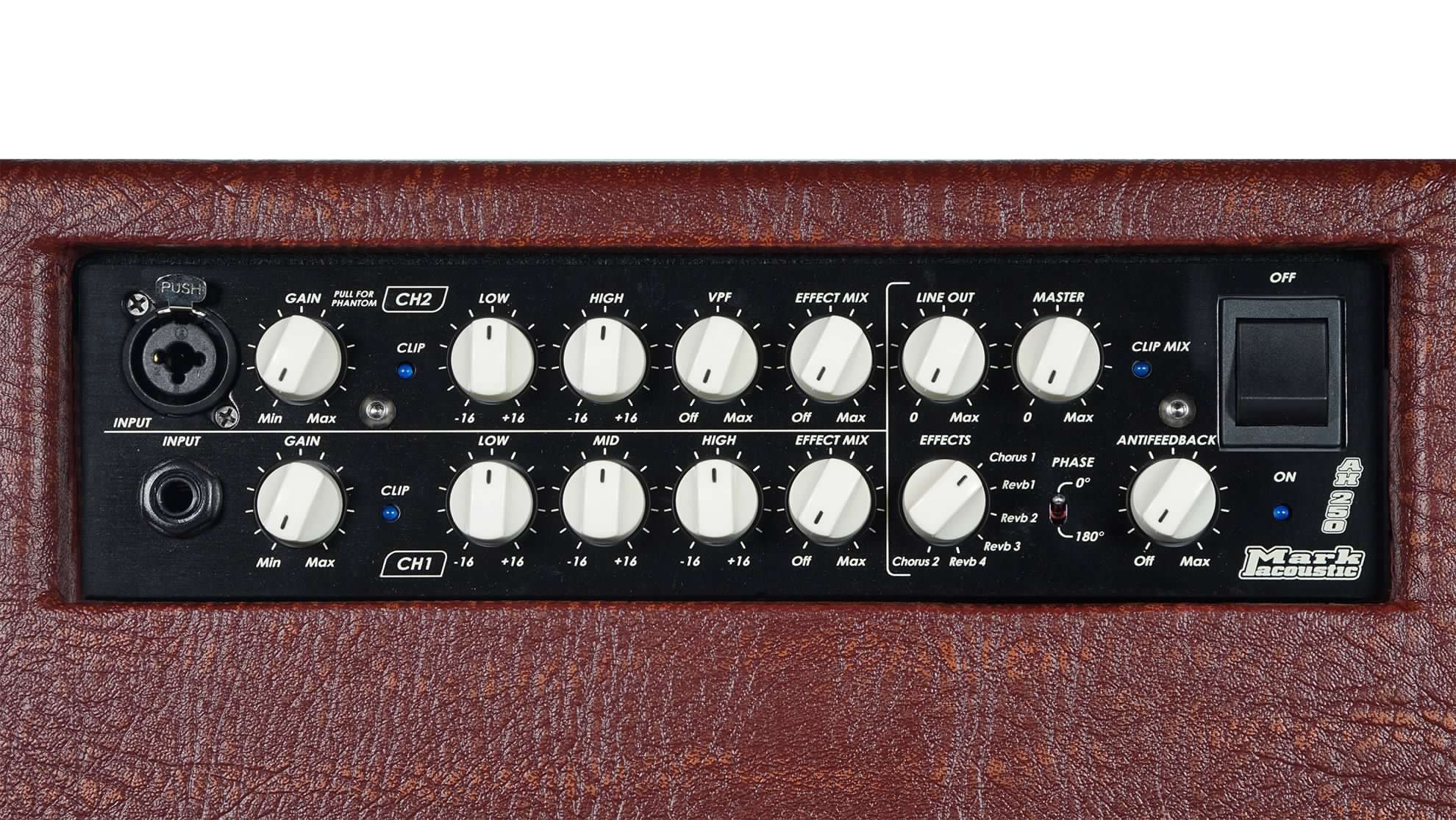

CONTROLS CH1
GAIN: -45dB ¸28 dB
EFFECT MIX (onboard effect only)
EQUALIZER
LOW: Level ±16 dB (40 Hz)
MID:  Level ±16 dB (600Hz)
HIGH: Level ±16 dB min  (6 KHz)
CONTROLS CH2
GAIN: -43dB ¸ 26 dB
PHANTOM: 48VDC
EFFECT MIX (onboard effect only)
EQUALIZER
VPF: Center Frequency (380 Hz)
LOW: Level ±16 dB  (60 Hz)
HIGH: Level ±16 dB min at (5 KHz)
OTHER CONTROLS
PHASE: 0°, 180°
ANTIFEEDBACK: 20Hz (off), 400 Hz
OUTPUTS
SEND: unbalanced, Max Voltage 20Vpp (Pre Equalization)
TUNER OUT: unbalanced, Max Voltage 2Vpp
LINE OUT XLR DI: balanced, Max Output: 20 Vpp
SPEAKER

1×10″

TWEETER

new 1″ voice coil tweeter

BASS PORT

rear

IMPEDANCE

8 ohms

SENSITIVITY

101 dB SPL

SPEAKER POWER HANDLING

200W RMS (AES Standard)

AMP OUTPUT POWER

(analog) 250W @ 4 ohm / 150W @ 8 ohm

FREQUENCY RESPONSE

45 Hz to 20 kHz

CROSSOVER FREQUENCY

3.5 kHz

ONBOARD DIGITAL EFFECTS
