ERGO System 1

ERGO System 1

Product code: MAK156012Z

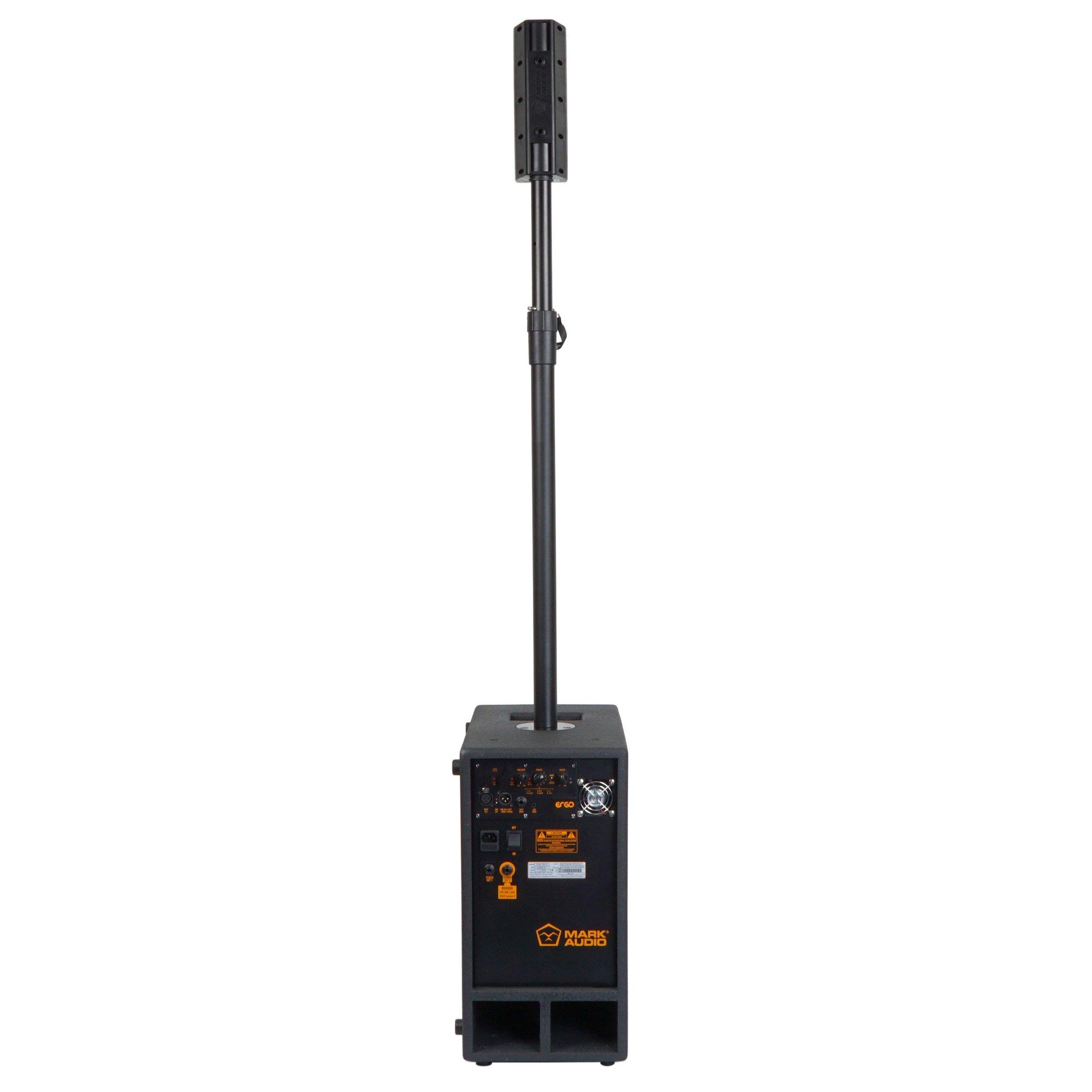

ERGO SYSTEM

POWERFUL, VERSATILE and ULTRA-PORTABLE AUDIO SYSTEM

The ERGO is an innovative portable audio system-concept with outstanding, accurate sound!
Choose the ERGO System fitting your needs, whatever the application: from small to large audiences, any kind of event or permanent installation. The satellites column design allows to rotate its configuration up to 360°, this is important for both the audience and the players, since hearing everything greatly enhances both the performance and the listening experience.
They can also be used as personal monitors or as home desk.
Let yourself and the audience hear your Music at its Best! Always hear everything, everywhere in the venue!

Specifications:

Additional information

POWER	1400W
WOOFER	4×2" full-range
SUBWOOFER	2×8"
SPL	123 dB
SIZE	S
SERIES	ERGO

Find a Dealer

Download Manual

Buy now

Let's play

Technical Features

MAIN FEATURES

TOTAL POWER 1.400 W
123 dB max SPL
FREQUENCY RESPONSE 50 Hz – 20 kHz
4 x 2″ neodymium full-range woofer
2 x 8″ subwoofer
Innovative DSP processor
Modularity, pole mountable, easy set-up and to transport
360° loudspeakers rotation

MULTIPLE APPLICATIONS

PIANOBAR
BANDS
PERMANENT INSTALLATIONS
MEETING HALLS
HOME THEATER

ACOUSTICAL

FREQUENCY RESPONSE : 50 Hz – 20 Khz
MAX SPL : 126 dB
HORIZONTAL COVERAGE ANGLE : 90°
VERTICAL COVERAGE ANGLE : 30°

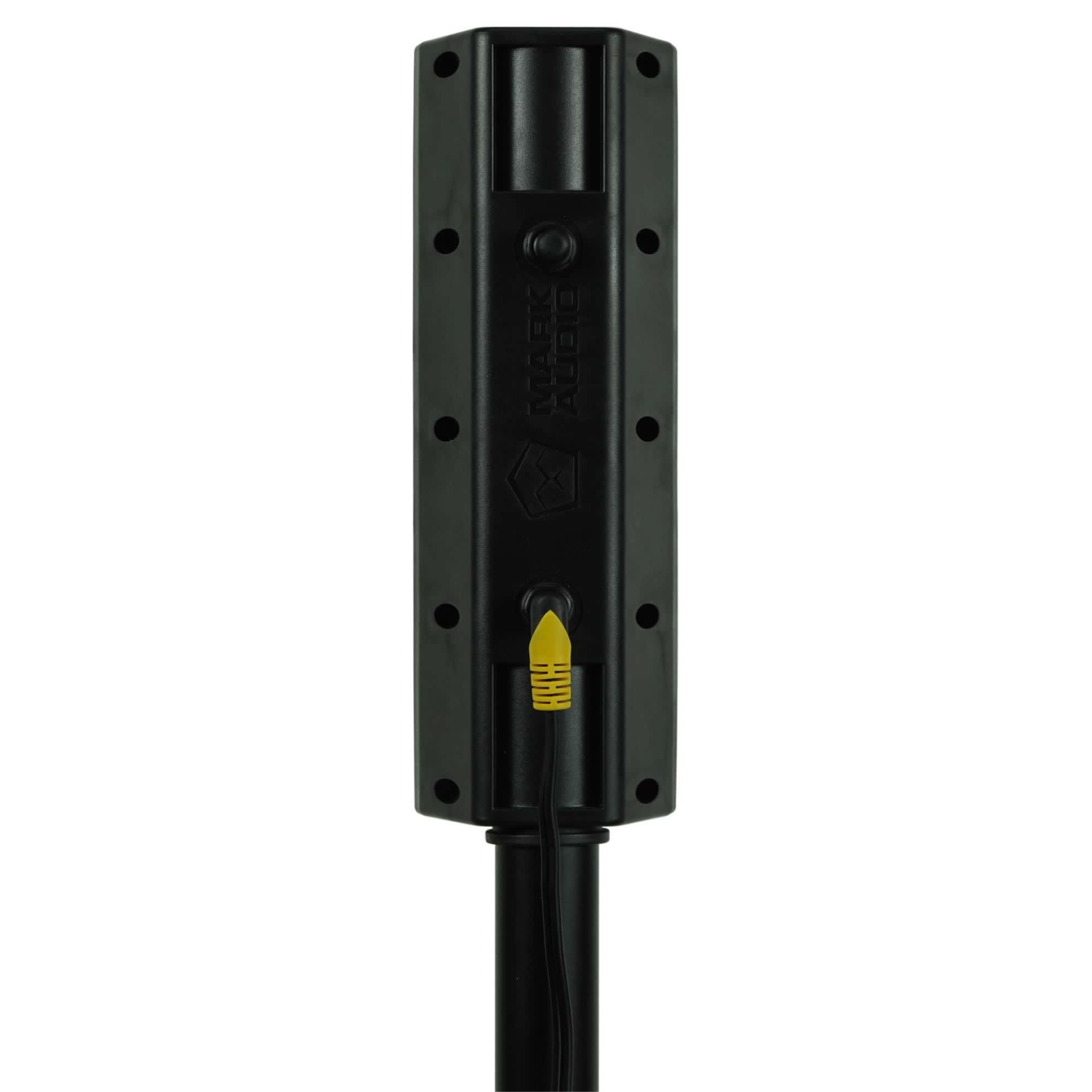

SATELLITES : 4 x 4”, 16 Ohm
SUB : 2 x 10” , 4 Ohm

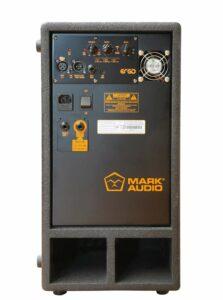

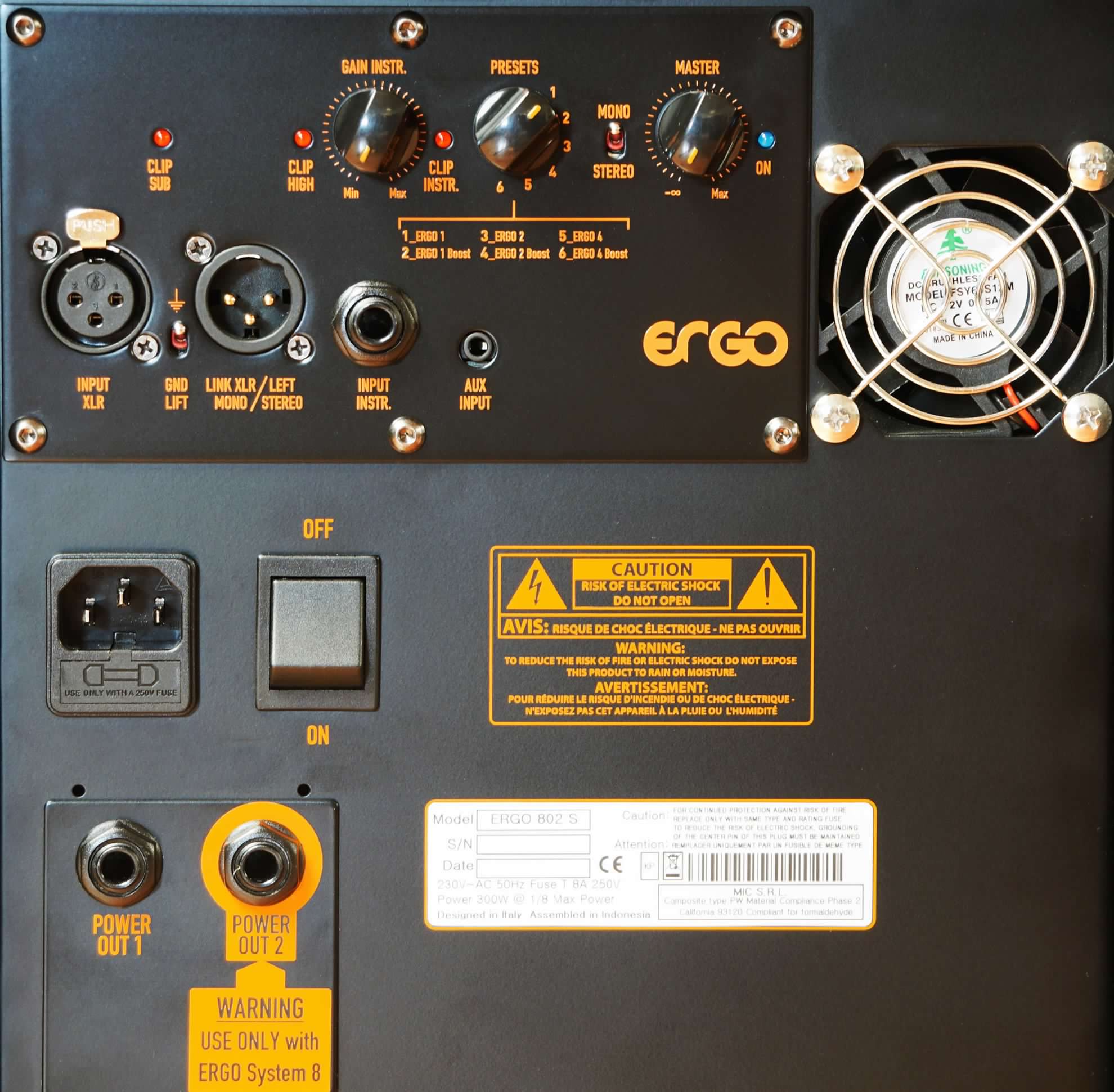

INPUT/OUTPUT

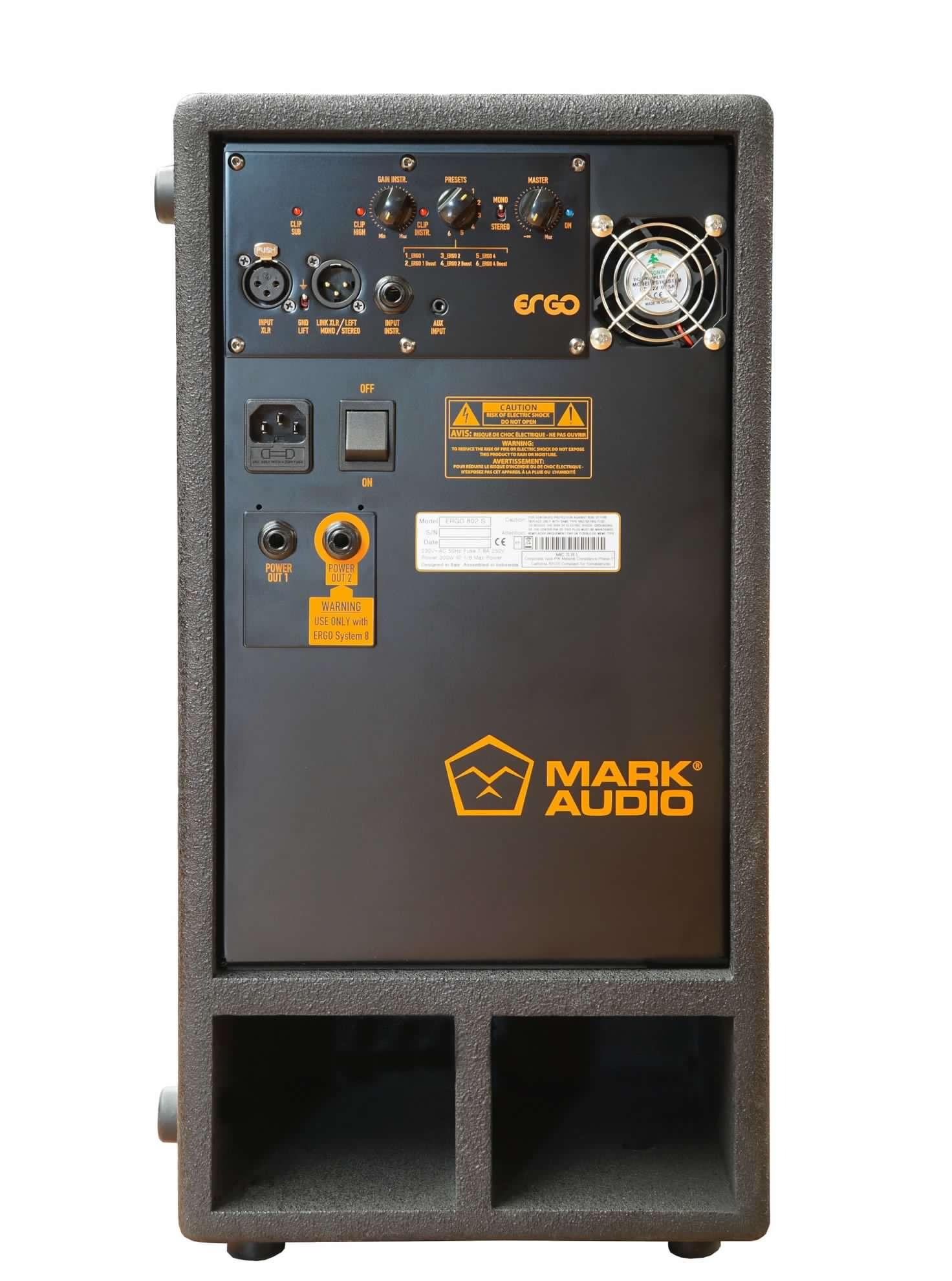

INPUT CONNECTORS : Jack – XLR female – AUX
OUTPUT CONNECTORS : XLR male
INPUT SENSITIVITY : -1,1 dBu (@ 1 kHz)

PROCESSOR

CROSSOVER FREQUENCIES : 180 Hz
PROTECTIONS : Thermal, rms
LIMITER : Soft limiter
CONTROLS : Volume, EQ

AMPLIFIER

TOTAL POWER (4ohm) : 2.000 W PEAK
HIGH FREQ. POWER (4ohm) : 1.000 W PEAK
LOW FREQ. POWER (4ohm) : 1.000 W PEAK
TOTAL POWER RMS (4ohm) : 1.000 W RMS
HIGH FREQ. POWER RMS (4ohm) : 500 W RMS
LOW FREQ. POWER RMS (4ohm) : 500 W RMS
COOLING : Convection
CONNECTIONS : VDE connector

CABINET

CABINET MATERIAL : Multiply poplar
HANDLES : 2 Side
POLE MOUNT/CAP : Yes
COLOUR : Black

PHYSICAL

SYSTEM HEIGHT (Vertical Sub) : min 143 cm (56′) / max 188 cm (74”)
SYSTEM HEIGHT (Horizontal Sub) : min 125cm (49″) / max 170cm (67”)
SYSTEM WIDHT : 43cm (17”)
SYSTEM DEPTH : 48cm (19”)
SATELLITES WEIGHT : 3 kg (6,6 lbs)
SUBWOOFER WEIGHT : 23 kg (50,7 lbs)
TOTAL WEIGHT : 26 kg (57,3 lbs)

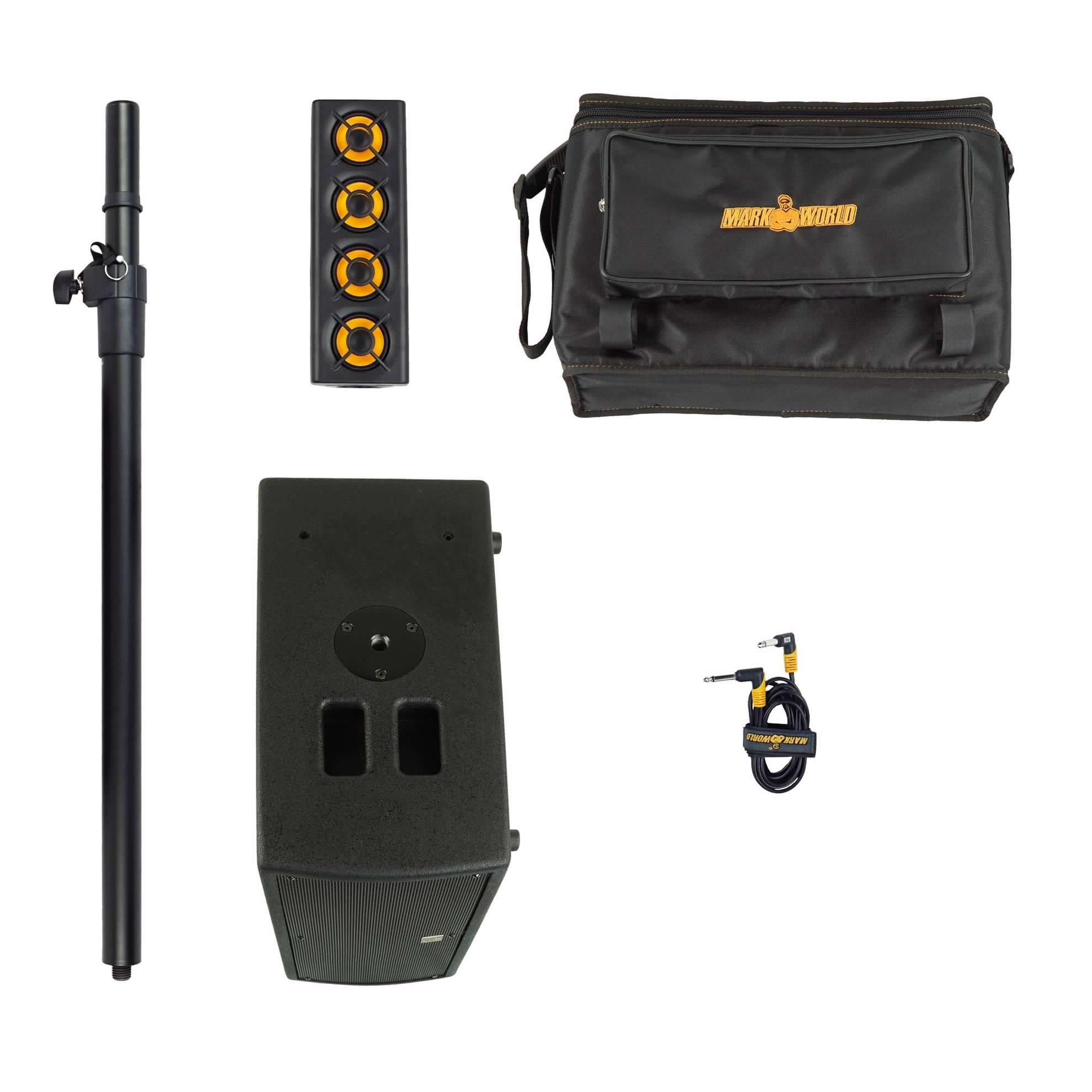

ACCESSORIES

OPTIONALS : Satellites transport bag included

OPTIONALS : Subwoofer cover optional
