Ground Stereo Pre
Product code: ground-stereo-pre

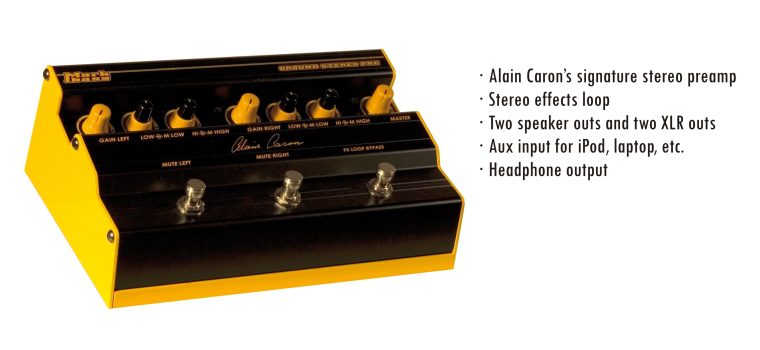

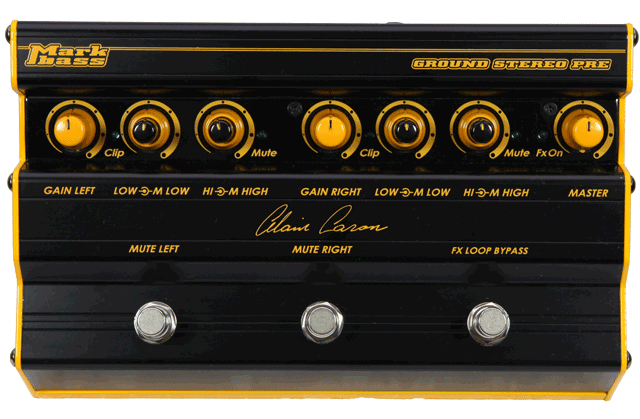

Working closely with bass legend Alain Caron, we have designed a stereo preamp that is innovative, useful, and truly unique in the market. It’s a foot pedal preamp—giving you convenient access to your controls at the front of the stage along with your effect pedals. Use the headphone output for private practicing, and connect an iPod or MP3 player to the aux input for playing along. Although it can be used mono, the Ground Stereo Pre is designed to be used in stereo with two powered cabinets, and stereo effects.
Channels: left / right
Gain control range (L/R): –60 –: 23 dB

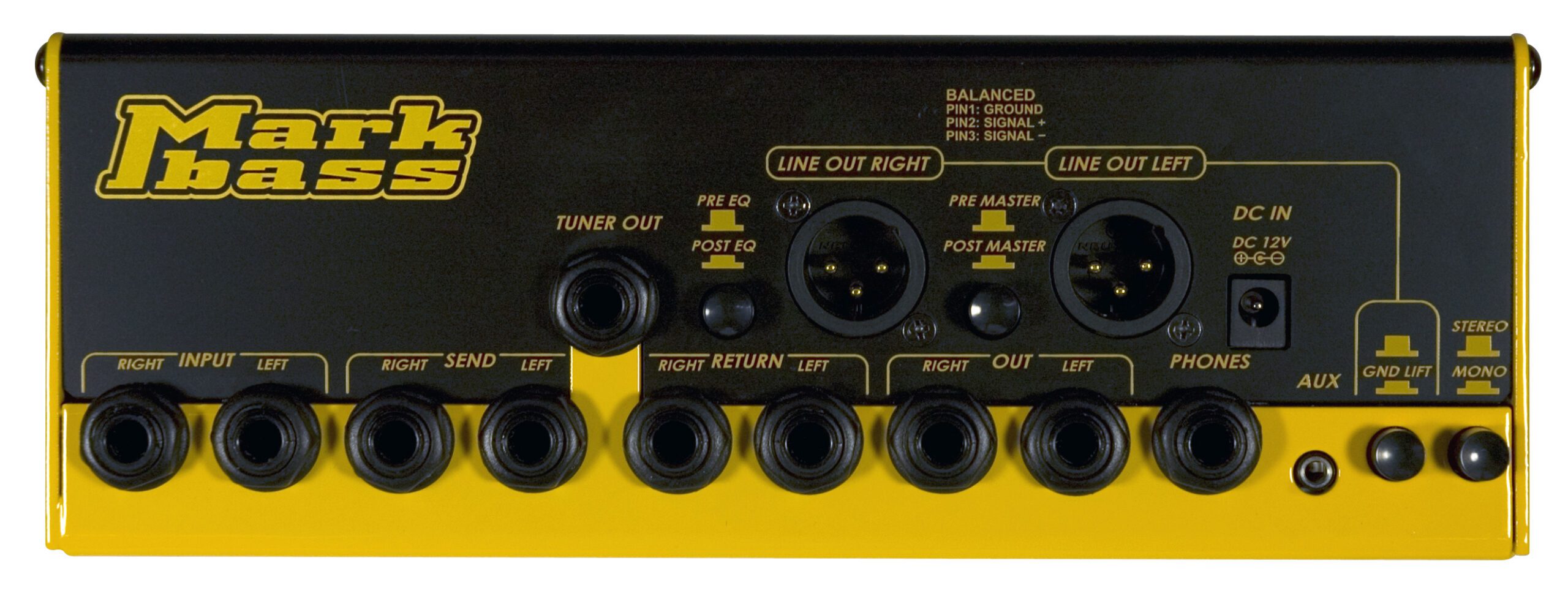

Inputs: 2x ¼” jacks (L/R)
Impedance / max. voltage: 500 Kohm / 4 Vpp
Outputs:
speaker outs: 2x 1/4” (L/R)
line out: 2x XLR (L/R)
tuner out
tuner out
EQ (for each channel): low / mid low / mid high / high
Switches:
mute L / mute R
FX loop bypass
FX loop bypass
line out: pre/post EQ, pre/post master
GND lift
stereo/mono
GND lift
stereo/mono
Power supply: 12V DV 200mA
Dimensions: 9.37” x 3.31” x 5.87” / 238 x 84 x 149 mm
Weight: 2.47 lb / 1,12 Kg
Product specifications are subject to change without notice
This innovative stereo preamp is designed as a foot pedal, giving you convenient access to your sound at the front of the stage. Although it can be used mono, it’s designed to be used with two powered cabinets and stereo effects. Features include 4-band EQ, auxiliary input (for iPod, etc) and headphone output.
Product Discontinued
