Markbass Compressore

Markbass Compressore

Product code: MBE170017Z

COMPRESSORE is a state-of-the-art compression tool that allows you to control gain, threshold, ratio, attack and release. The pedal also true bypass, which means that when the compressor is ‘off’, your signal goes directly from the input jack to the output jack without any degradation of audio quality.

Specifications:

Additional information

TYPE	ANALOG
SIZE	M
POWER REQUIREMENT	12VDC

Find a Dealer

Download Manual

Buy now

Technical Features

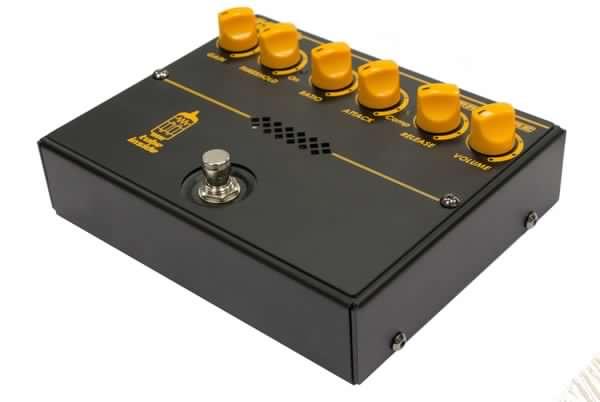

CONTROLS

GAIN
THRESHOLD
RATIO
ATTACK
RELEASE
VOLUME
ON/OFF SWITCH

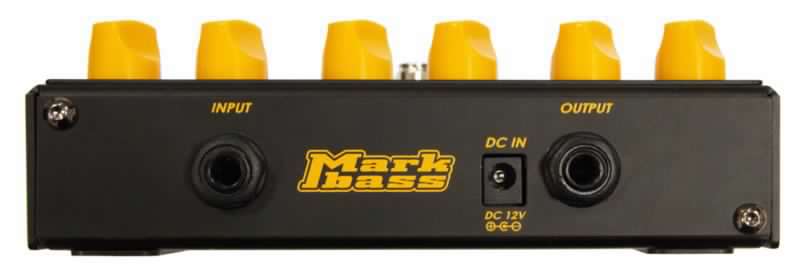

REAR PANEL

INPUT jack
OUTPUT jack
POWER jack (DC 12V)

TECHNICAL SPECS

Input Impedance: 300 Kohm
Gain: 0 ÷ +16dB
Threshold: 30mVp ÷ 1,8 Vp
Ratio: 1:1 ÷ 1:? (hard limiter)
Attack: 2 ÷ 50 ms
Release: 100 ÷ 750 ms
Output Impedance: 100 ohms
Power Requirements – DC input: +12VDC / 600mA minimum*
TUBE: 1x ECC81
Dimensions: 6.53”x 5.59”x 2.08” / 166 x 142 x 53 mm
Weight: 1.55 lbs / 700 gr

* 12VDC power supply included
